Name: Black Woven Wire Mesh
Brand: JLHY
Availability: InStock

Features

1. Even meshes.

2. Smooth surface.

3. Outstanding filtering performance.

4. Widely applications.

5. Long service life.

6. Low cost.

Applications

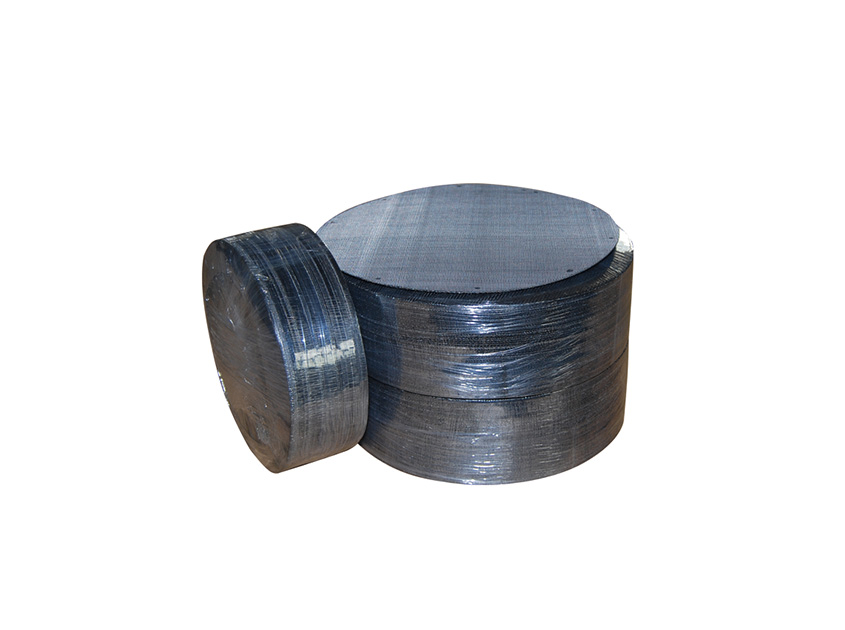

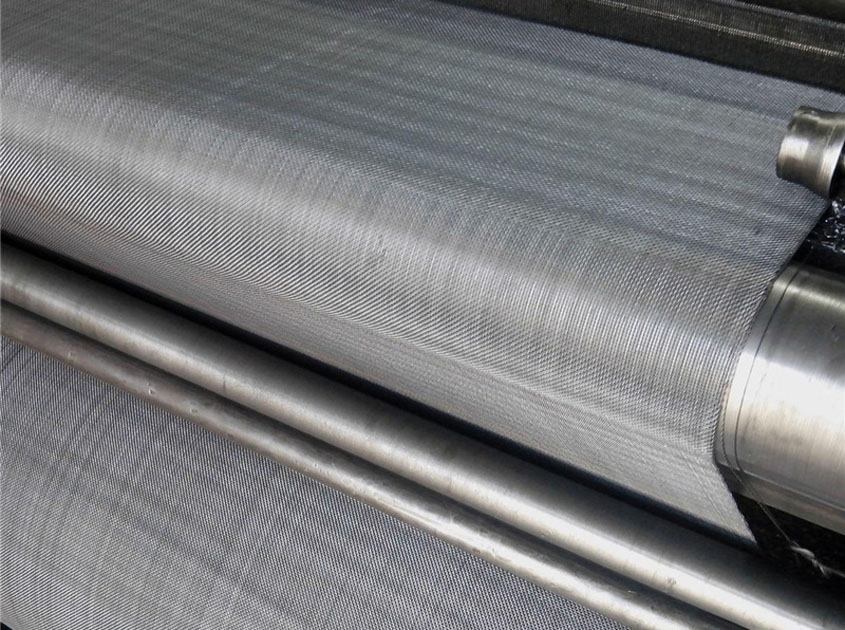

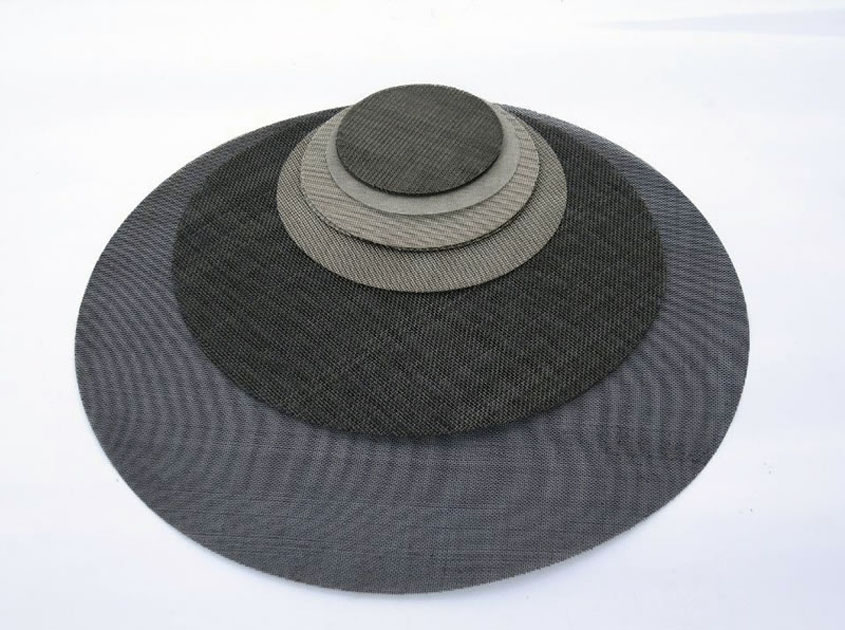

Black woven mesh is made of low-carbon steel wire without surface treatment, also known as black wire cloth and iron cloth. Black silk cloth is woven with plain weave, twill and herringbone weave, and is usually supplied in rolls. It can also be cut into various shapes such as circles, rectangles, squares, ovals, etc. according to your requirements.

Mild Steel wire cloth is widely used in plastic industry, rubber industry, industrial filtration, oil and chemical filtration, grain industry filtration, screening of powder particles, filtration of liquid and gas. Black wire cloth also can be used for all kinds of mold.

Technology & OEM

Material: low carbon steel wire.
Weaving type: plain weave, twill weave and dutch weave.
Wire diameter: 0.15mm - 0.6mm.
Mesh sizes:
Plain Weave Black Wire Cloth – Mesh from 6 to 80
Dutch Weave Black Wire Cloth – Mesh from 12 x 64 to 40 x 200
Width: 0.914m - 1.3m.
Length: commonly is 30m, other specs can be customized.
Shape: round, rectangular, square, oval and woven wire cloth.

Specifications

Mesh/Inch	Opening (mm)	Wire Diameter (mm)	Reference weight (kg/sq. meter)
10 mesh × 10 mesh	1.94	0.6	1.8
10 mesh × 10 mesh	1.98	0.56	1.56
12 mesh × 12 mesh	1.52	0.6	2.16
12 mesh × 12 mesh	1.56	0.56	1.88
18 mesh × 18 mesh	0.96	0.45	1.82
18 mesh × 18 mesh	1.0	0.41	1.52
18 mesh × 18 mesh	1.04	0.37	1.23
18 mesh × 18 mesh	1.06	0.35	1.1
20 mesh × 20 mesh	0.86	0.41	1.68
20 mesh × 20 mesh	0.9	0.37	1.38
22 mesh × 22 mesh	0.74	0.35	1.33
22 mesh × 22 mesh	0.79	0.30	0.99
24 mesh × 24 mesh	0.7	0.35	1.5
26 mesh × 26 mesh	0.63	0.35	1.66
28 mesh × 28 mesh	0.6	0.31	1.36
30 mesh × 30 mesh	0.64	0.31	1.46
32 mesh × 32 mesh	0.5	0.29	1.36
34 mesh × 34 mesh	0.47	0.28	1.3
36 mesh × 36 mesh	0.47	0.28	1.3
38 mesh × 38 mesh	0.41	0.26	1.1
40 mesh × 40 mesh	0.39	0.25	1.2
40 mesh × 40 mesh	0.41	0.23	1.06
40 mesh × 40 mesh	0.43	0.21	0.88
42 mesh × 42 mesh	0.365	0.24	1.1
44 mesh × 44 mesh	0.347	0.23	1.0
46 mesh × 46 mesh	0.332	0.22	1.0
48 mesh × 48 mesh	0.319	0.20	0.96
50 mesh × 50 mesh	0.318	0.19	0.91
50 mesh × 50 mesh	0.338	0.17	0.72
56 mesh × 56 mesh	0.248	0.17	0.81
60 mesh × 60 mesh	0.27	0.15	0.68
