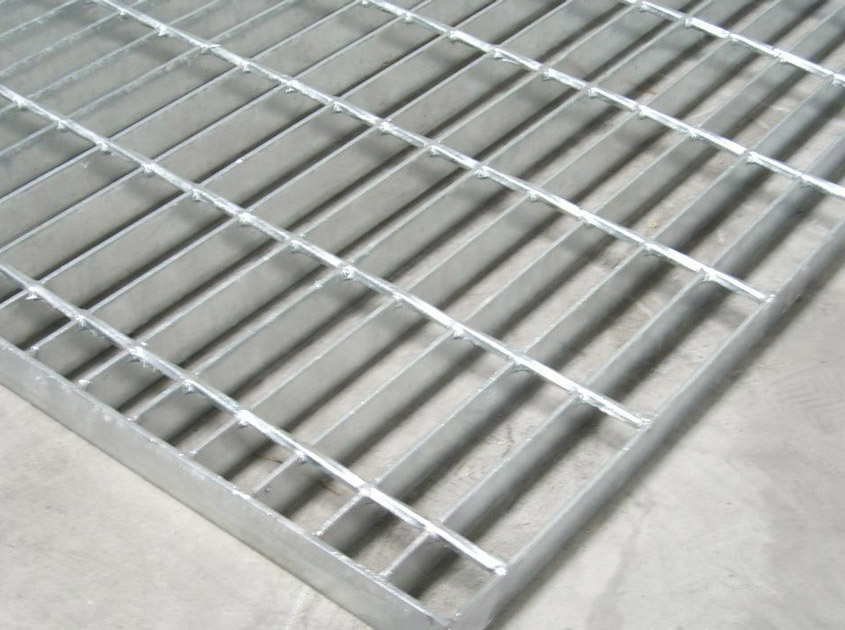

Steel grating
Steel grating
- Steel grating — Quick Details
- •Usage: Power plant and steel structure.
- •Material: Galvanized Sheet
- •Flat-rolled steel Material: Low carbon steel,stainless steel
- •Cross Bar Material: Q235A,304 stainless steel
- •Surface Treatment: electric galvanized,hot galvanized
- •Length of Steel Grating Plate: ≥800mm
- •Cross Bar Spacing: 50mm,100mm
- •Package details: Pallet packing; Strap packaging; Screw rod fixation
- •Delivery time: 20 days
Detailed Information For Steel grating
Features
Material savings: The way to withstand the most material under the same load conditions, and correspondingly, the material of the support structure can be reduced.
Less investment: save materials, labor, labor, free cleaning and maintenance.

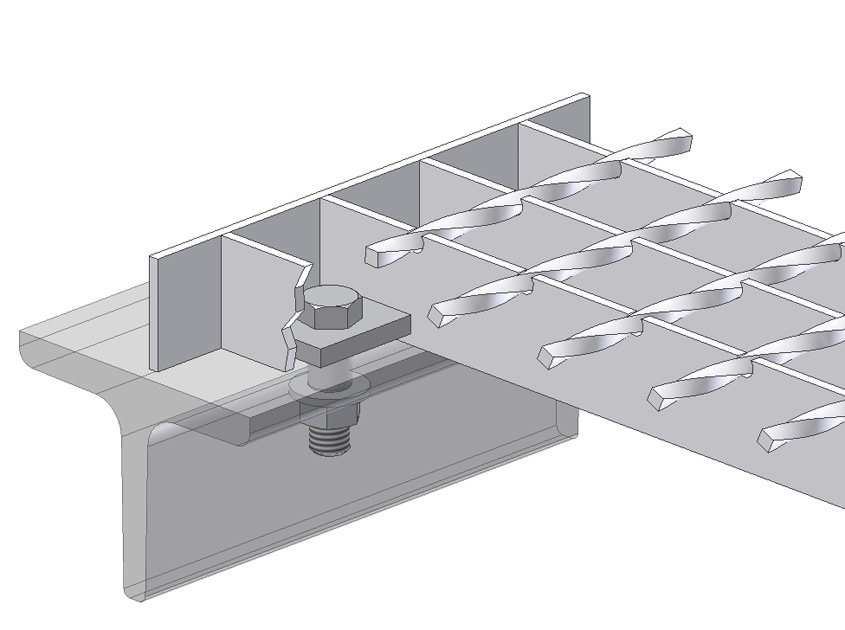

Simple construction: It can be completed by one person with bolts clamped or fixed on the pre-installed support.
Save time: The product does not require on-site rework and is installed very quickly.
Durable: It is treated with hot dip zinc and anti-corrosion treatment before leaving the factory. It has strong impact resistance and heavy pressure.
Modern style: beautiful appearance, design specifications, ventilation and light, giving people a modern and smooth feeling.
Lightweight structure: less material, light structure and easy lifting.
Reduce wind resistance: due to good ventilation, small wind resistance and wind damage.
Anti-soil: no rain, snow, or dust. Ventilation, lighting, heat dissipation, explosion-proof, good anti-slip performance
Applications
Steel grating are used in such industries as petroleum and chemical, port, power, transportation, paper making, medicine, steel and iron, food, municipality, real estate, manufacturing, etc.
Technology & OEM
1. Material :Mild steel & Low carbon steel, etc.
2. Surface treatment: hot-dipped galvanized, electric galvanized.
3. Bearing bar shapes: plain or serrated or I bar type.
4. Bearing Bar Pitch (center to center): 30, 40, 60mm are recommended,but we can also do it under customer's request.
5. Bearing Bar (Load Bar) Specifications (mm):The specification(thickness of bearing bar)of plain type and serrated type is 20 x 3 to 100 x 10;
6. Cross bar pitch(mm) :38, 40, 50, 60, 76, 80, 100, 110, 120 etc.
Specifications
| Common Specification Of Steel Grating | |
| Material Standard | ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304, Mild steel & Low carbon steel, etc |
| Bearing Bar(width*thickness) | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Surface treatment | untreated(black), hot-dipped galvanized ,powder coated, electroplate, painting or as per customers' requirement. |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Packing | 1) LCL(less than one container load): packed with plastic film then on the pallets 2) FCL(full container load): nude packing 3) Other special package :according to customers' requirements. |
| Payment Term | T/T,L/C, Paypal, Western Union, MoneyGram, Credit Card ,D/A,D/P, Trade assurance |
| Remarks: Other sizes also can be customized according to customers' requirement. | |
Note: Special size and specification can be customized.
