Decorative Perforated Metal Mesh
Decorative Perforated Metal Mesh
- Decorative Perforated Metal Mesh — Quick Details
- •Sheet thickness: 0.5–5.0 mm
- •Hole diameter: 1–20 mm
- •Open area: customized
- •Sheet size: standard or made to order
Detailed Information For Decorative Perforated Metal Mesh
Features
Precision-punched holes with uniform patterns
Strong yet lightweight structure
Excellent acoustic and ventilation performance
Highly customizable designs
Applications
Interior and exterior wall panels
Acoustic ceilings and partitions
Façades and sun control screens
Furniture and decorative elements
Technology & OEM
Surface Treatment
Powder coating
Anodizing
PVD coating
Brushed or polished finish
OEM Options
Hole size, shape, and pattern
Material and thickness options
Custom colors and coatings
Laser-cut branding or designs
Specifications
1. Hole Shape (Common Options)
Round (R) – most widely used, cost-effective
Square (S) – modern geometric appearance

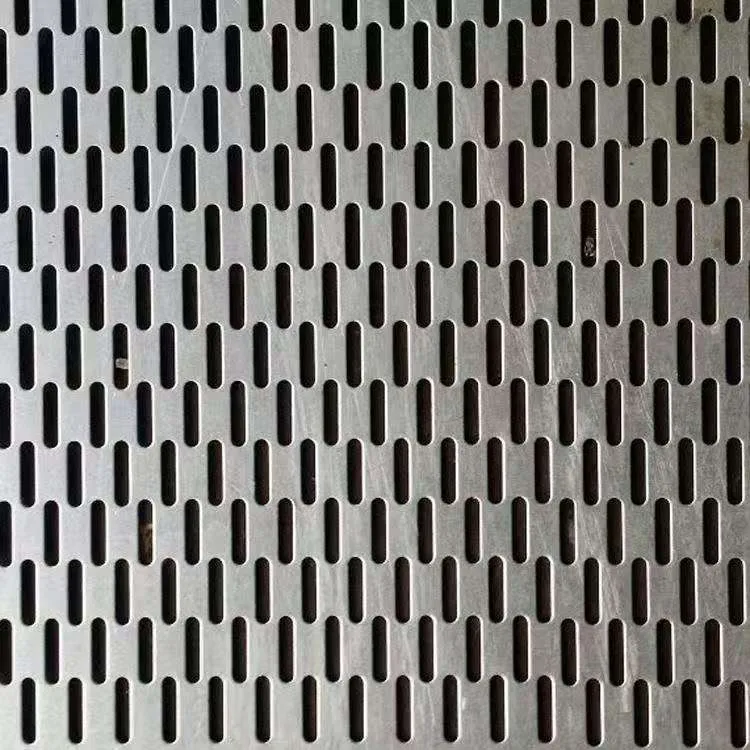

Rectangular / Slotted – ventilation and linear design
Hexagonal – high open area, honeycomb look
Diamond – decorative and anti-slip
Custom / Laser Cut – logos, patterns, architectural designs
2. Hole Size (Diameter or Width)
| Hole Shape | Common Hole Size Range |
|---|---|
| Round | Ø1 – Ø20 mm |
| Square | 2 × 2 – 20 × 20 mm |
| Slot | 2 × 10 – 10 × 50 mm |
| Hexagonal | 4 – 20 mm (across flats) |
| Diamond | 5 × 10 – 20 × 40 mm |
Popular decorative sizes: Ø3 mm, Ø4 mm, Ø5 mm, Ø6 mm, Ø8 mm, Ø10 mm
3. Hole Pattern (Pitch Arrangement)
Straight Line (60° or 90°)
Staggered (60° – most common)
Diagonal
Square Pitch
Custom / Random / Graphic Pattern
Typical Pitch Reference (Round Holes)
| Hole Diameter | Pitch (Center to Center) |
|---|---|
| Ø3 mm | 5 – 6 mm |
| Ø4 mm | 6 – 8 mm |
| Ø5 mm | 8 – 10 mm |
| Ø6 mm | 10 – 12 mm |
| Ø8 mm | 12 – 16 mm |
| Ø10 mm | 15 – 20 mm |
4. Sheet Thickness (Material Gauge)
| Material | Common Thickness Range |
|---|---|
| Aluminum | 0.8 – 4.0 mm |
| Stainless Steel | 0.6 – 3.0 mm |
| Carbon Steel | 0.9 – 5.0 mm |
| Galvanized Steel | 0.8 – 3.0 mm |
| Brass / Copper | 0.8 – 2.0 mm |
Most common decorative thickness: 1.0 mm, 1.2 mm, 1.6 mm, 2.0 mm
5. Open Area (Approximate)
| Hole Size / Pitch | Open Area (%) |
|---|---|
| Ø3 mm / 5 mm | ~32% |
| Ø4 mm / 6 mm | ~40% |
| Ø5 mm / 8 mm | ~35% |
| Ø6 mm / 10 mm | ~33% |
| Ø8 mm / 12 mm | ~40% |
| Ø10 mm / 15 mm | ~42% |
(Open area varies by pattern and thickness.)
6. Sheet Size (Length × Width)
Standard Sizes
1000 × 2000 mm
1220 × 2440 mm (4′ × 8′)
1250 × 2500 mm
1500 × 3000 mm
Custom Sizes
Cut-to-size panels
Large-format façade panels
Perimeter framing and bending available
7. Edge & Processing Options
Raw edge
Deburred / smooth edge
Framed panels
Bending / folding
Rolling
Welding or mounting holes
8. Tolerance (Typical)
Hole diameter: ±0.1 mm
Pitch: ±0.2 mm
Thickness: per material standard
Sheet size: ±2.0 mm
9. Typical Decorative Applications by Specification
| Application | Recommended Spec |
|---|---|
| Interior wall panels | Ø4–6 mm holes, 1.2–2.0 mm thickness |
| Facades / sun screens | Ø6–10 mm holes, 2.0–3.0 mm thickness |
| Acoustic panels | Ø3–5 mm holes, staggered pattern |
| Balustrades | Ø6–8 mm holes, ≥2.0 mm thickness |
| Ceiling panels | Ø4–6 mm holes, lightweight aluminum |
10. Notes for OEM & Projects
Custom patterns available via CNC or laser perforation
Surface treatment applied after perforation (powder coating, anodizing, PVD)
Fire-rated materials available upon request
Samples and drawings (CAD / DXF) supported
